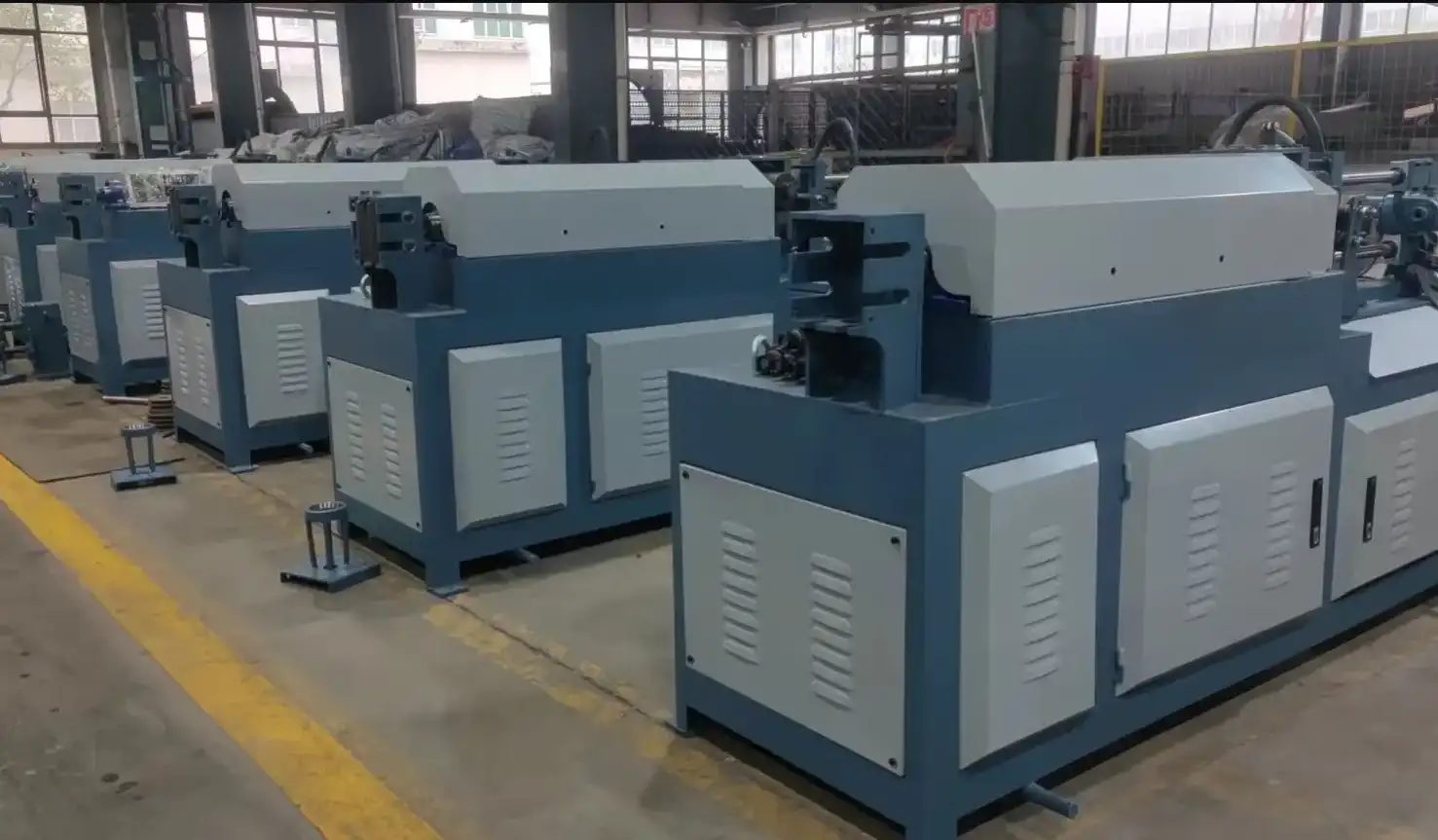

Volarmachine GT Series: Precision Rebar Straightening and Cutting Machines
Ensure the structural integrity of your construction projects with Volarmachine’s high-performance rebar processing solutions. Our GT series (GT6-14, GT4-12, and GT6-12) is engineered for maximum precision, high-speed traction, and long-term durability in demanding environments.
Why Choose Volarmachine for Steel Bar Processing?
At Volarmachine, we combine advanced orthodontic technology with robust mechanical engineering. Our machines deliver a straightening degree of ±2mm/m and a cutting length error of just ±10mm, ensuring every steel bar meets international building standards.

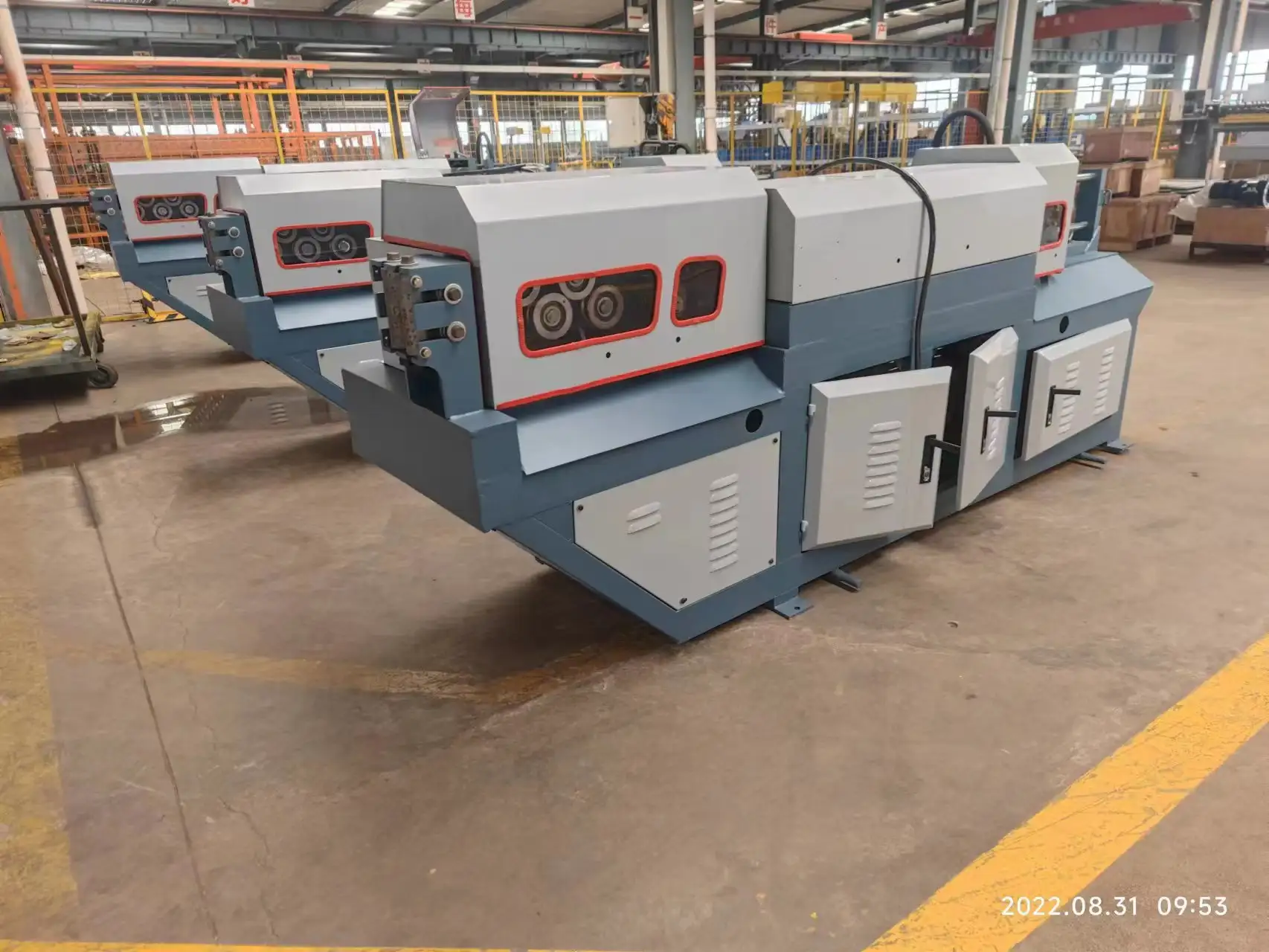

Core Technology: The 8-Wheel Orthodontic System
The heart of a Volarmachine lies in its optimized alignment mechanism:
-
Dual-Drive System: Features four central alignment wheels and four high-traction running wheels.
-
Stress Relief: Our system mimics a gentle, controlled arc to neutralize internal tension without compromising the rebar’s tensile strength.
-

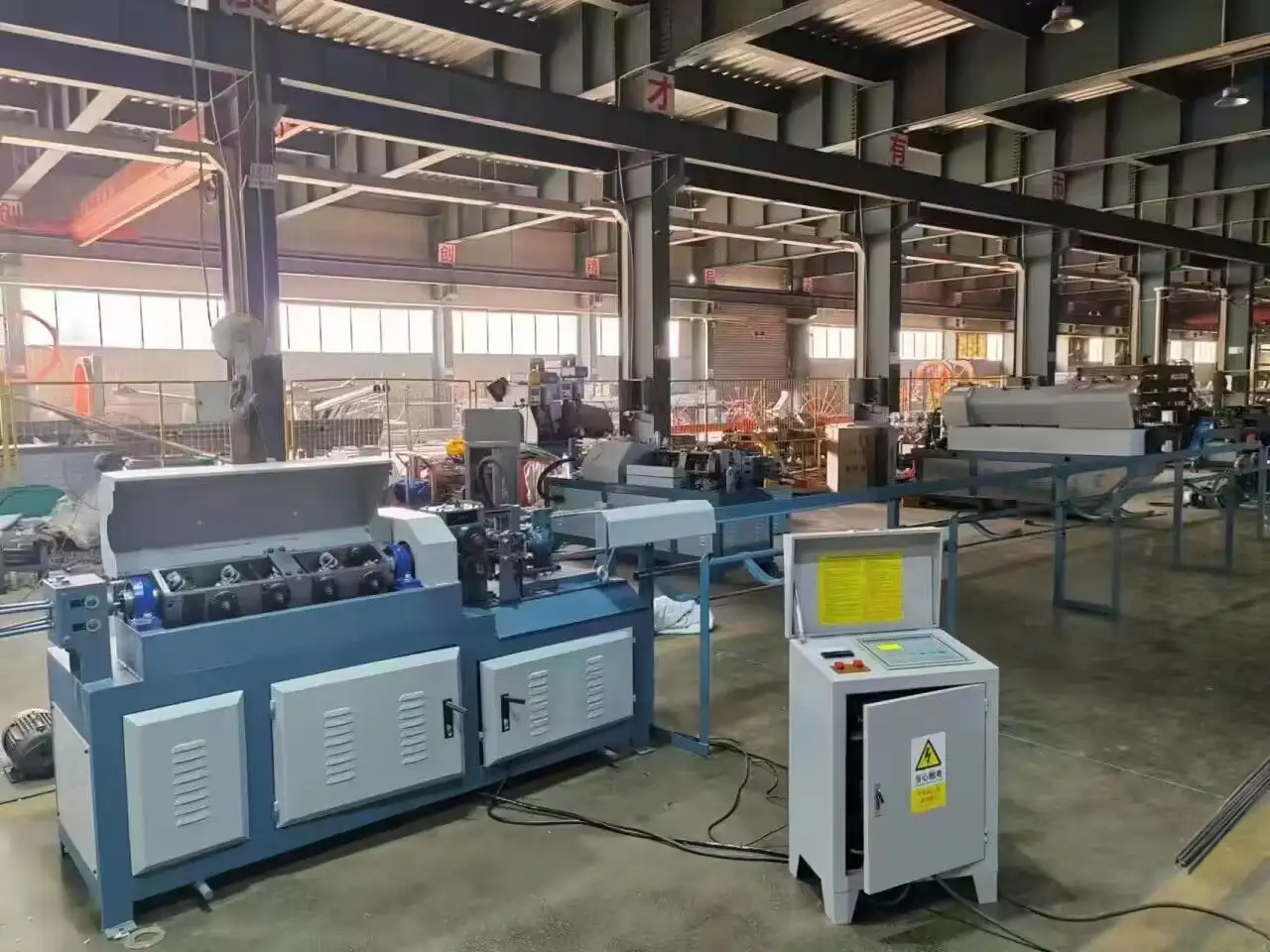

High-Speed Efficiency: Reach traction speeds up to 52m/min (GT6-14 model) for high-volume production.
Technical Specifications: Compare Our Models
| Model | GT6-14 | GT4-12 | GT6-12 |
|---|---|---|---|
| Straightening diameter range | Ф6-Ф14mm | Ф4-Ф12mm | Ф4-Ф12mm |
| Traction speed | 52m/min | 48m/min | 45m/min |
| Straightening degree | ±2mm/m | ±2mm/m | ±2mm/m |
| Traction motor power | 11KW-4 P | 7.5KW-4 P | 9KW-4 P |
| Oil pump motor power | 5.5KW-4 P | 4KW-4 P | 5.5KW-4 P |
| Fixed length of wire | 500-9000mm（Can be extended） | 800-9000mm( Can be extended ) | 300-9999mm（Can be extended） |
| Wire cutting length error | ±10mm | ±10mm | ±10mm |
| Weight | 1100kg | 850kg | 450kg |
| Dimension | 2900mm×800mm×1100mm | 2200mm×730mm×1150mm | 1730mm ×900mm ×850mm |
Operational Guide & Best Practices
1. Orthodontic Block Calibration
The Volarmachine orthodontic cylinder uses five specialized blocks. Align the 1st and 5th blocks on the centerline, then offset the middle three by ~3mm. Adjust incrementally until the rebar is perfectly straight.
2. Safety First
-

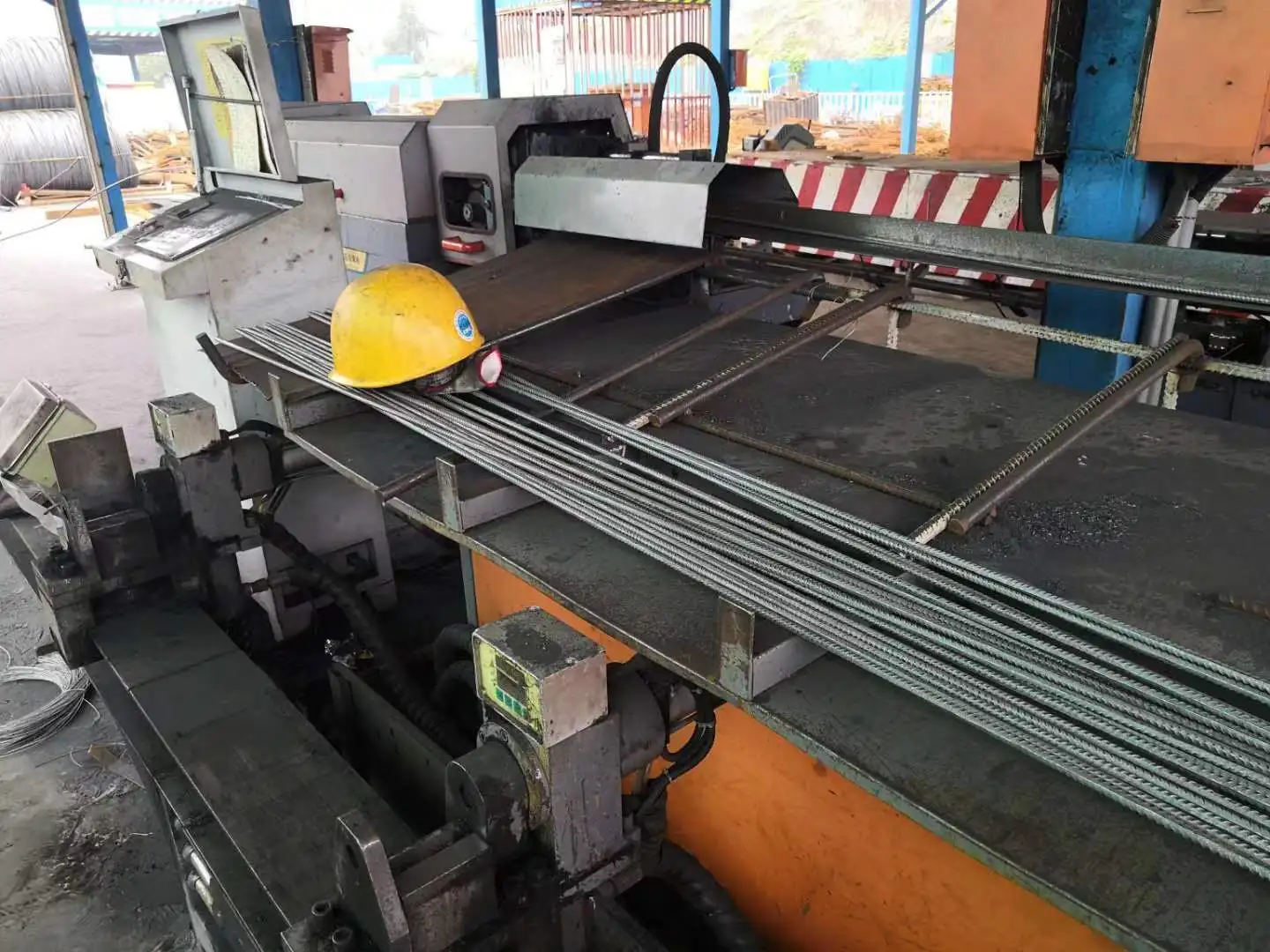

Guide Installation: Always use a 1-meter guide pipe at the entrance to prevent "whiplash."
-
Protective Covers: Ensure all covers are locked before operation to prevent block dislodgement.
-
Operator Safety: Gloves are strictly prohibited during operation to prevent entanglement with pressure rollers.
3. Maintenance Tip
Always verify the cutting length after the first 3-4 bars. If there is a discrepancy, adjust the limit switch or fixed-length plate immediately to maintain Volarmachine’s precision standards.
