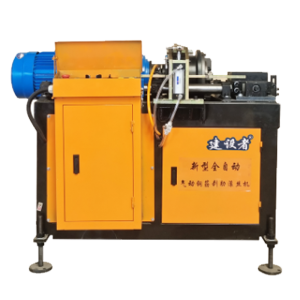

The Steel Bars Ribbed Stripping and Threaded Machine is a multi-functional equipment designed for the high-precision processing of rebar mechanical joints. By integrating rib stripping and screw thread rolling into a single operation, it ensures a standard, full-profile thread that meets the highest construction safety standards for bridges, subways, and high-speed railways.
Key Functional Advantages：
- Dual-Function Integration: This machine performs both rib stripping and thread rolling in one cycle, significantly increasing efficiency compared to traditional methods.
- Industrial-Grade Stability: Featuring an enlarged cylinder and a body made of welded steel plates, it provides ultra-firm clamping and long-term durability with minimal maintenance.
- Precision Threading Head: The head adopts a spiral rising angle design. Equipped with double-sided cutting blades, it ensures the thread head is "full" (clean and complete) with high dimensional accuracy.
- One-Button Automation: Designed for simplicity. A single press of the button completes the entire threading process, making it accessible even for entry-level operators.
- Wide Application: Specifically engineered for HRB335, HRB400, and HRB500 steel bars with diameters from 16mm to 40mm.
High-Speed Production Line Features：
Our CNC-integrated version of the Steel Bars Ribbed Stripping and Threaded Machine includes:
- PLC Precision: Feeding rollers are controlled by PLC for ±1mm accuracy.
- Automated Feeding: Equipped with a large-tonnage storage rack and V-shaped rollers to reduce labor costs and material waste.
- Superior Accuracy: The 20mm integrated cutting plate ensures the machine remains stable under high-load, continuous operation.
Technical Specifications of Steel Bars Ribbed Stripping and Threaded Machine
| Model | Electric pneumatic wire machine |
|---|---|
| Machine power supply | 3 phase 380V 50Hz |
| Rated power | 5.5kw/7.5kw |
| Processing length | 100mm |
| Processing scope | Φ16-40mm |
| Spindle speed | 85r/min |
| Overall weight | 550kg |
| External dimensions | 1450×850×1150mm |
Precision Meets Power: The Professional Choice
Our Single Rebar Threading Equipment represents the pinnacle of CNC innovation. Designed for the rigorous demands of high-speed railway and bridge construction, it seamlessly integrates electrical, hydraulic, and pneumatic systems.
Advanced PLC & Feeding System
The feeding roller is managed by a Programmable Logic Controller (PLC). Combined with fixed baffles and movable rollers, it guarantees sub-millimeter accuracy, ensuring every rebar cut and thread meets international safety standards.
Innovative Raw Material Management
Equipped with a large-tonnage storage rack, the machine works in tandem with our automatic bar feeder. This setup eliminates secondary transportation, drastically shortening the production cycle and boosting your daily output.
Durability in Every Detail
-
V-Shaped Rollers: Specially treated for wear resistance and noise reduction.
-
Integrated Cutting Plate: Our 20mm thick cutting unit offers superior stability compared to the standard 10-12mm plates found in the market.
-
Rib Stripping Excellence: The main head features a reinforced cylinder for smoother stripping and faster threading.
Contact us today for the best price on this Steel Bars Ribbed Stripping and Threaded Machine.
Steel Bars Ribbed Stripping and Threaded Machine
High-performance Steel Bars Ribbed Stripping and Threaded Machine for sale. Features PLC control, 7.5kw power, and Φ16-40mm processing scope. Perfect for high-speed railway and bridge construction.
Product Brand: volar machine
4.8
Pros
- High precision thread processing
- Automatic rib stripping and thread rolling
- Easy one-button operation
Cons
- Heavy machine weight (550kg)
