Advantages：
-
Integrated Multi-Functional Design: One machine replaces multiple traditional processes, saving space and power.
-
High-Precision Servo System: Features high-torque permanent magnet servo motors for stable bending speeds up to 1200°/sec.
-
Dual-Line Processing Capability: Specifically optimized for high-speed production, handling double lines of 6-10mm rebar simultaneously.
-
Intelligent Control Interface: User-friendly PLC touch screen supports multi-angle bending and stores hundreds of shape graphics.
-

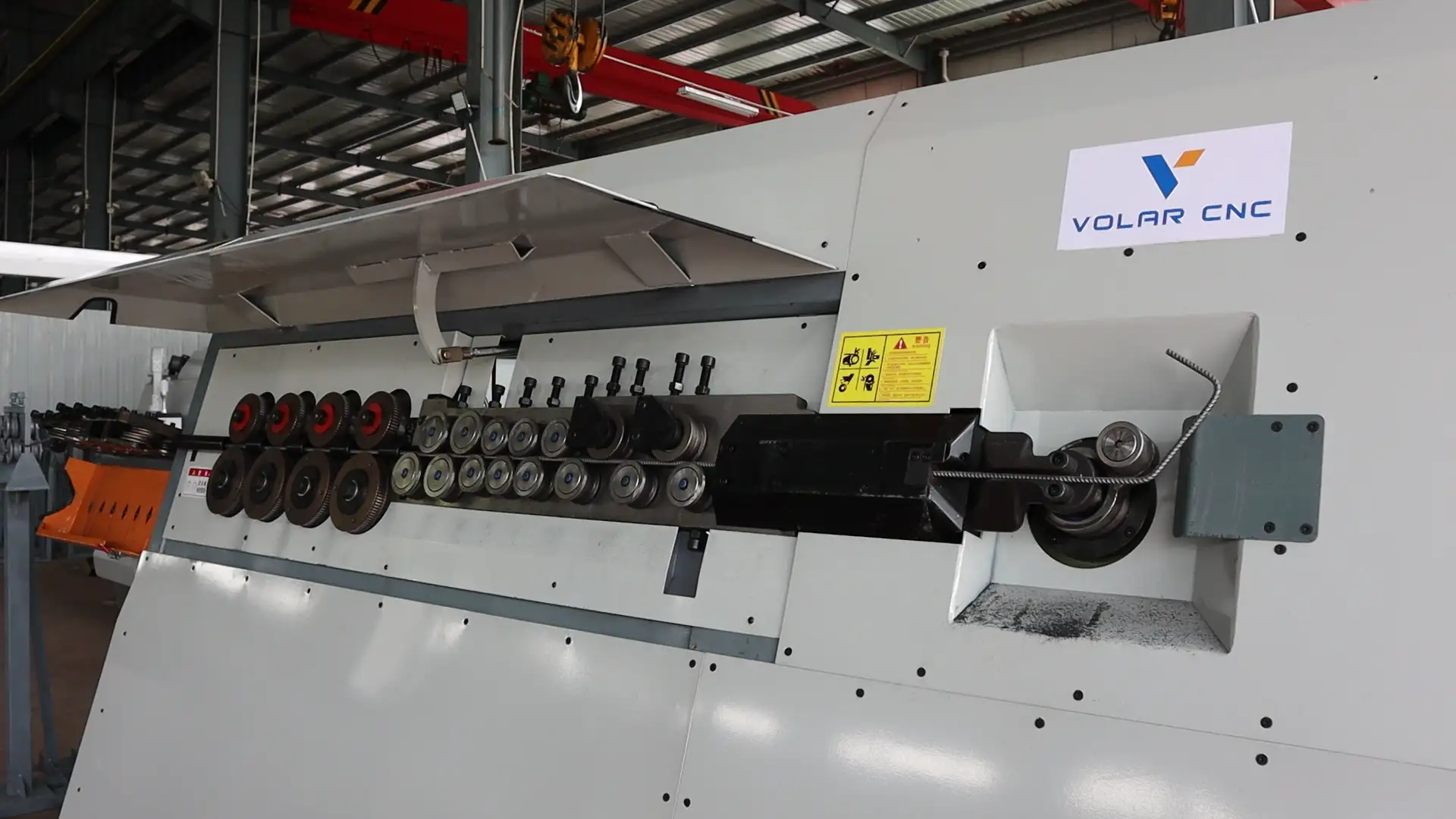

Durable Componentry: High-hardness alloy steel straightening rollers and cutting blades ensure long service life and minimal maintenance.
| model | VLGW6-12 |
|---|---|
| Double line steel bar processing diameter (mm) | Ф6-10mm |
| Maximum traction speed (m/min) | 110m/min |
| Number of traction wheels | 8 wheels |
| Traction motor power | Synchronous servo motor 20.4kw |
| drive | Synchronous servo drive 28kw |
| touch screen | 15 inches |
| Shear motor power | Mechanical cutting 4.0KW cutting motor |
| Minimum hoop size | 50mm |
| Device host weight | 2000KG |
| Reinforcement angle error | ±1° |
| Rated voltage | 380V |
| Single line steel bar processing diameter (mm) | Ф6-12mm |
| Maximum bending angle in both forward and reverse directions | 180° |
| Maximum bending speed | 1200°/sec |
| External dimensions of the host | 4005×1100×2200 |
| Bending clamp motor power | Synchronous servo motor 7.5kw |
| drive | Synchronous servo drive 7.5kw |
| system | Albert 15 inch 8.0 intelligent system |
| Maximum diagonal length of hoop reinforcement | 1660mm |
| Device Color | Iron plate primary color |
| Reinforcement sizing error | ±1mm |
| Pneumatic system pressure | ≥0.7mpa |
| Total power | 35.9kw |
Applications：
Our VLGW6-12 CNC Rebar Bender is widely used in:
-
Precast Concrete Factories
-
Infrastructure Projects (Highways, Bridges, Railways)
-
Housing & Commercial Construction
-
Large-scale Steel Fabrication Centers
FAQ
-
Q: What materials can the VLGW6-12 process?
-
A: It is designed for hot-rolled/cold-rolled ribbed rebar and smooth round steel bars.
-
-
Q: Do you provide technical training for operators?
-
A: Yes, we provide comprehensive operation manuals, video tutorials, and 24/7 online technical support.
-
-
Q: What is the lead time for this machine?
-
A: Standard models are usually dispatched within 15-20 working days.
-
