Features:
- No check valves, fluid sealing systems or dry-running protection devices are required;
- Easily transport corrosive slurries, corrosive acids and alkalis, and gaseous fluids;
- Transporting high viscosity fluids and shear sensitive fluids (such as pulp fibers);

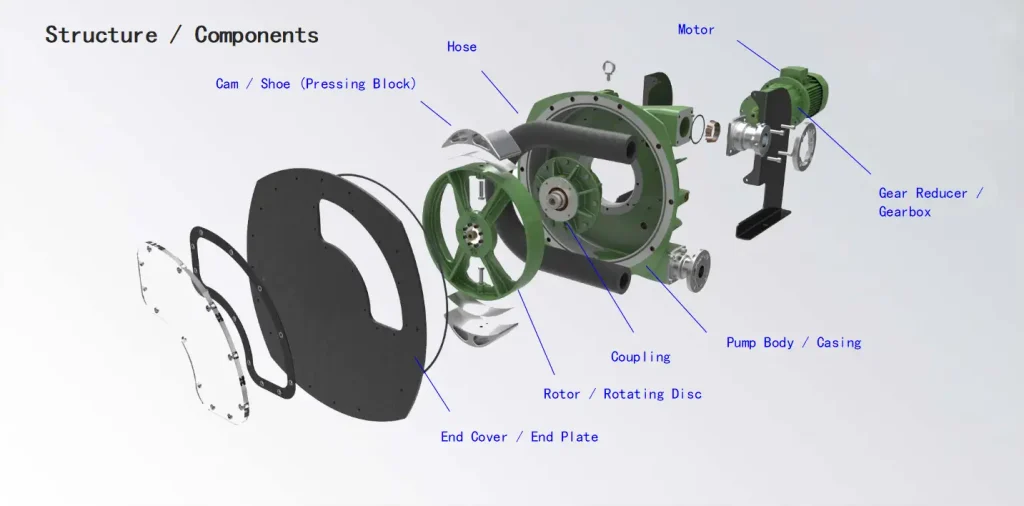

- Excellent sealing, anti-blocking and anti-corrosion performance; only the hose and pump head are in contact with the fluid, without sealing rings, ball valves, diaphragms, sealing tubes, stators, pistons, etc., making maintenance easier;
- Can be reversed to clear a clog or thoroughly flush fluid from a line;
- It has self-priming ability, the suction distance can reach 9m, and the lift can reach 130m;
- High efficiency, the slurry medium concentration can reach up to 75%; economical and efficient, saving more than 50% energy compared with centrifugal pumps;
- No slipping, high measurement accuracy and good repeatability;
- Adjusting the pump speed varies the flow rate while maintaining a nearly constant discharge pressure.
| Model | Power | Dischargem2/H | Output pressure MPa | Motor KW |
|---|---|---|---|---|
| KP300-6NP-0.75KW | 1 | 0.6 | 0.75 | |
| KP300 | KP300-13NP-15KW | 1 | 1.3 | 1.5 |
| KP300-6NP-22KW | 2.6 | 0.6 | 2.2 | |
| KP300-13NP-4KW | 2.6 | 1.3 | 4 | |
| KP400-6NP-1.5KW | 2.5 | 0.6 | 1.5 | |
| KP400 | KP400-13NP-3KW | 2.5 | 1.3 | 3 |
| KP400-6NP-3KW | 6 | 0.6 | 3 | |
| KP400-13NP-5.5KW | 6 | 1.3 | 5.5 | |
| KP600-6NP-5.5KW | 16 | 0.6 | 5.5 | |
| KP600 | KP600-10NP-7.5KW | 16 | 1.0 | 7.5 |
| KP600-13NP-11KW | 16 | 1.3 | 11 | |
| KP800 | KPB00-6NP-11KW | 30 | 0.6 | 11 |
| KP800-13NP-18.5KW | 30 | 1.3 | 18.5 |
